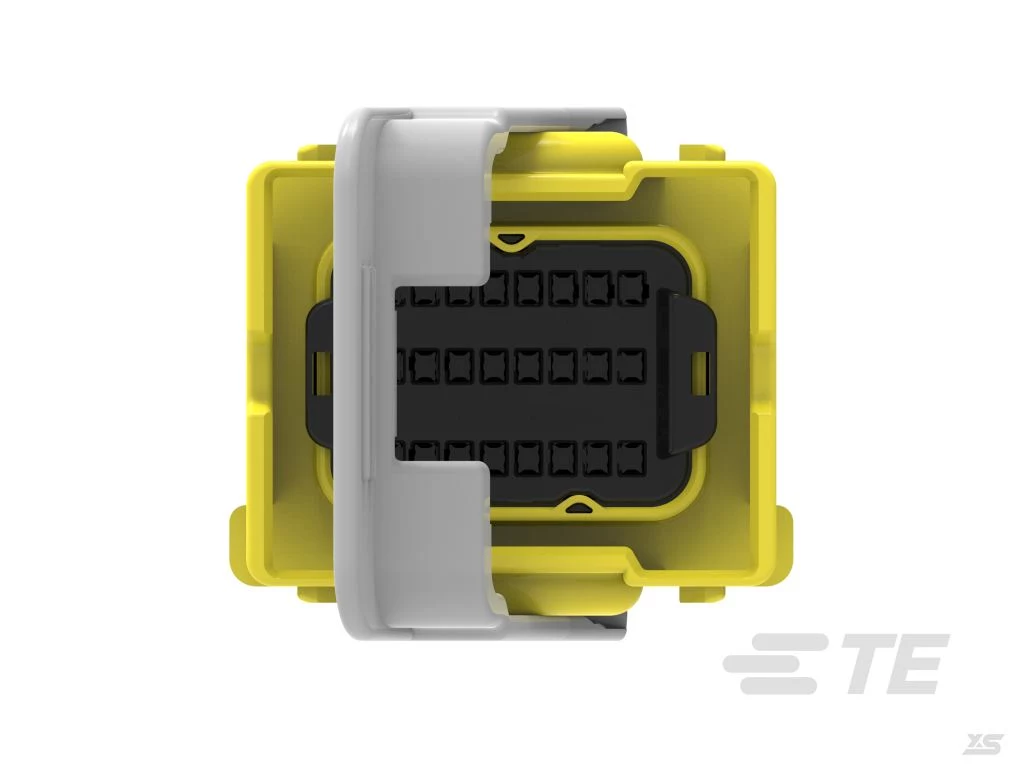

1-2098923-2

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
2.54 mm[.1 in]
Product Description:
sdm,24p plug asy,lhl,key a

Connector Type Female
Connector System Wire to Board
Waterproof Yes
Hybrid Connector No
Number of holes 24
Number of rows 3
Body material PA GF
Outlet angle 90°
Main product colour Yellow
Centreline (pitch) 2.54 mm[.1 in]
Product Height 39.45 mm[1.55 in]
Product length 50.68 mm
Product Width 48.36 mm[1.9 in]
UL Flame Retardant Rating No
Package
Package Quantity 50
Mating Male Width .64 mm[.025 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage
Nominal Voltage Rating - Operating Voltage - Nominal Voltage Architecture - Nominal Voltage
Connectors and terminals terminated to -
Terminal Current Ratings (Max)
