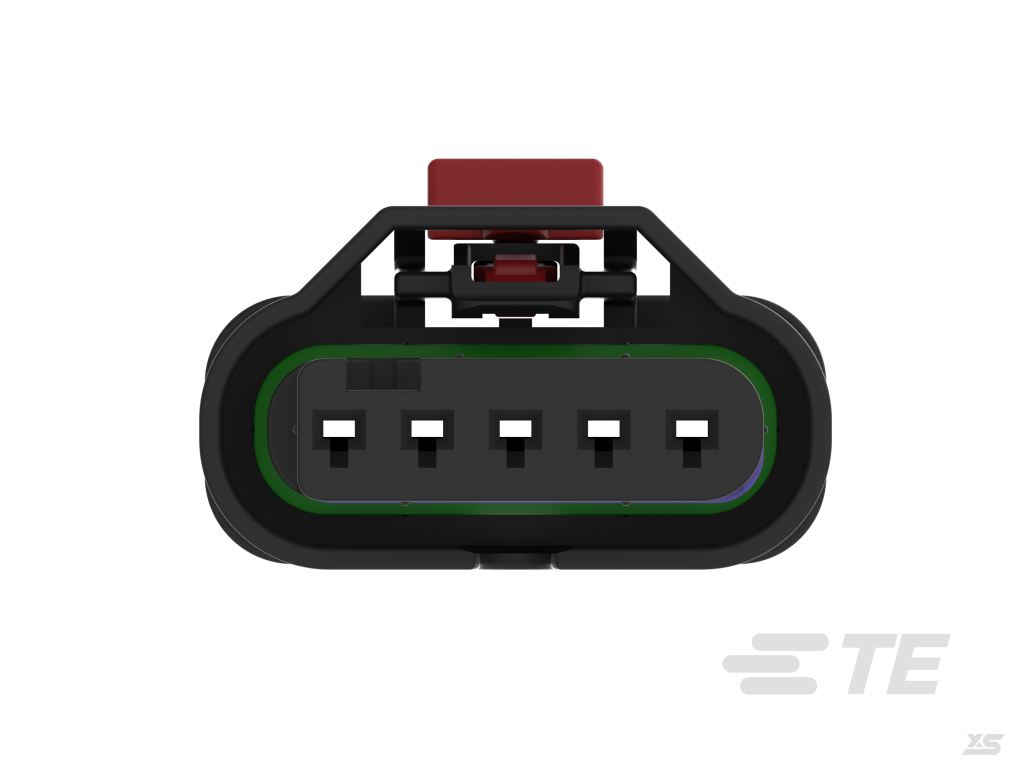

1-2236898-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
4 mm[.157 in]
Product Description:
5POS, MCON 1.2 LL REC SEALED

Connector Type Female
Connector System Wire to Wire, Wire to Board
Waterproof Yes
Hybrid connector No
Number of holes 5
Number of rows 1
Body material PA GF
Outlet angle 180°
Main Product Colour Black
Centreline (pitch) 4 mm[.157 in]
Product Height 16.5 mm[.65 in]
Product length 28.7 mm
Product Width 26.5 mm[.043 in]
UL Flame Retardant Rating -
Packaging method
Package Quantity -
Width at male end 1.2 mm[.047 in]
Circuit Application Signal
Waterproof Rating IP6K9K
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V
Connectors and terminals terminated to -
Terminal current rating (max) -
