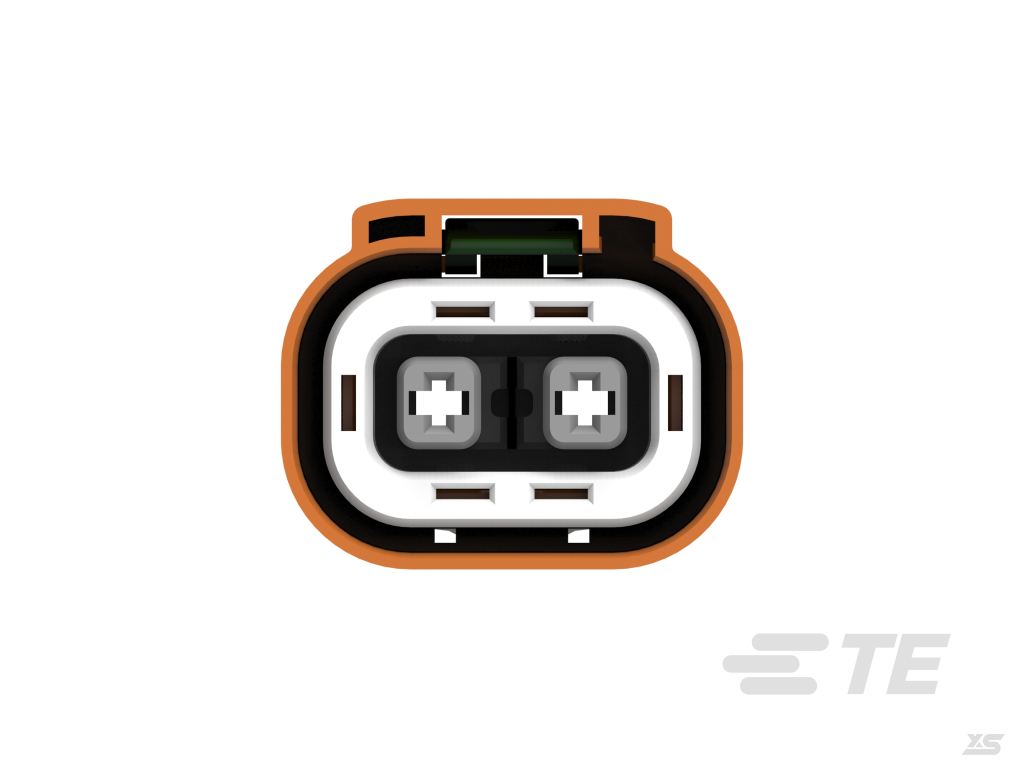

1-2305020-2

Type: Automotive Connector Boot

Brand: TE

Connectivity Colour: -

Product Description: PLUG ASSY, KEY B, CPA, HVA280-2PHI, 4MM2

Connector Type Female

Connector System Wire-to-wire

Waterproof Yes

Hybrid connector No

Number of holes 2

Number of rows 1

Body Material PA GF

Outlet Angle 180°

Main Product Colours -

Centreline (pitch) -

Product Height 26.4 mm[1.03 in]

Product Length 32.9 mm

Product Width 53.9 mm[2.12 in]

UL Flame Retardant Rating -

Packaging Method Package

PackagingQty 1

Mating Male Width 2.8 mm[.11 in]

Circuit Application Signal

Waterproof Rating -

Operating Voltage 600 VDC

Nominal Voltage Architecture 12 V,24 V,42 V,48 V,80 V,90 V,125 V,240 V,500 V,550 V,600 V

Connector and Terminal Termination -

Terminal Current Rating (Max)
