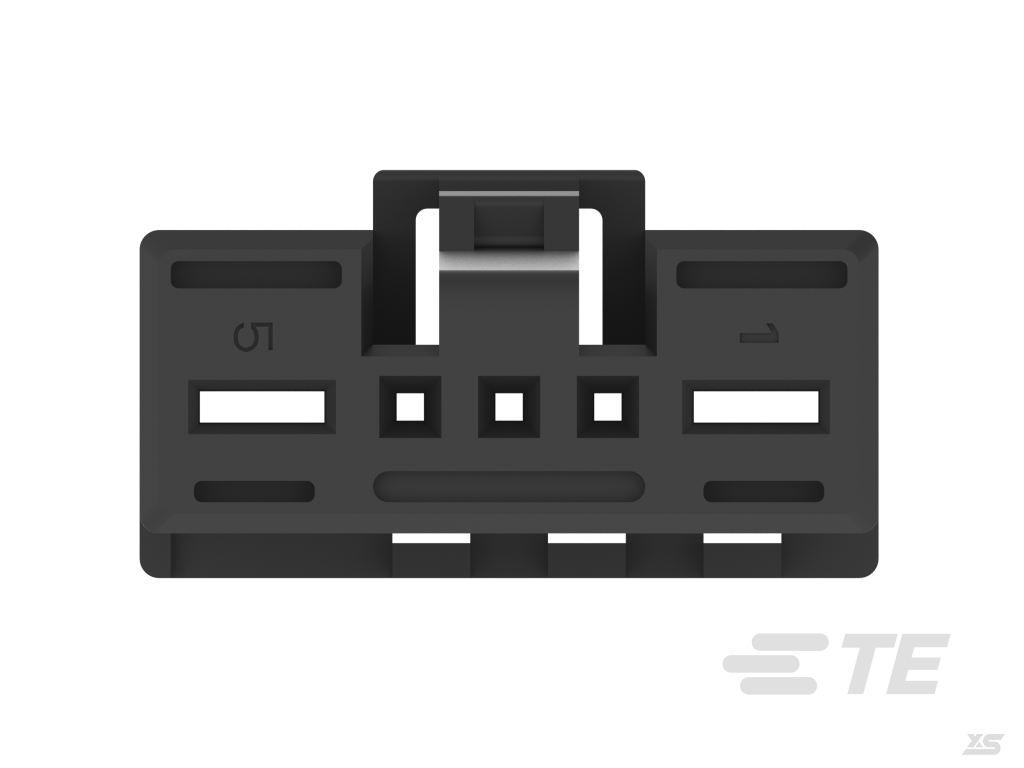

1379217-2

Type:
Automotive connector sheath
Brand:
AMP
Color:
2.54 mm[.1 in]
Product Description:
5w mpq+mqs soc hsg

Connector Type Female
Connector System Wire to Wire
Waterproof No
Hybrid connector yes
Number of holes 5
Number of rows 1
Body material PBT GF
Outlet angle 180°
Main Product Color White
Centerline (pitch) 2.54 mm[.1 in]
Product Height 10.5 mm [.413 in]
Product Length 19 mm
Product Width 20.5 mm[.807 in]
UL Flame Retardant Rating UL 94HB
Packaging Method
Package Quantity
Butt Male Width .63 mm[.025 in]
Circuit Application Signal
Waterproof Rating
Operating Voltage 16 VDC
Nominal Voltage Architecture 12 V
Connectors and terminals terminated to -
Terminal Current Rating (Max)
