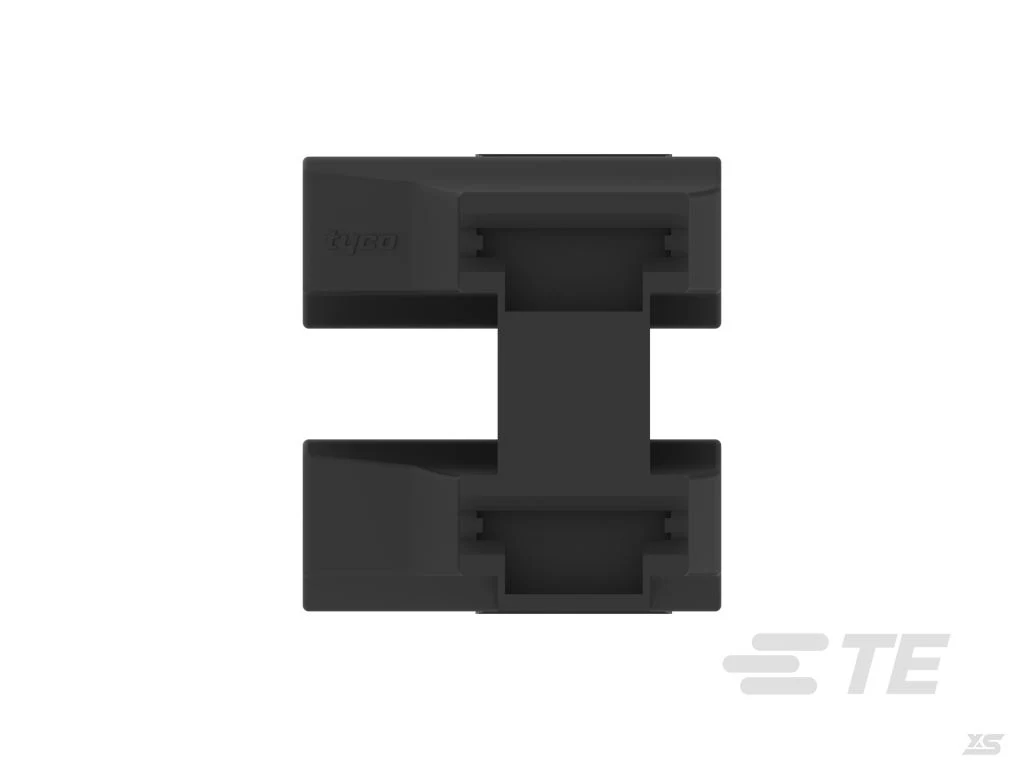

1544352-1

Type:
Automotive Connector Housing
Brand:
TE Connectivity
Color:
-
Product Description:
CAP.CLIP DRAPEAU 6

Connector Type Female
Connector System Wire-to-Board
Waterproof No
Hybrid Connector No
Number of Holes 2
Number of Rows 2
Body Material PA
Wire Exit Angle 90°
Primary Product Color Black
Center Line (Pitch) -
Product Height 18.9 mm [.744 in]
Product Length 17.2 mm
Product Width 17.6 mm [.692 in]
UL Flammability Rating UL 94HB
Packing Method Box
Package Quantity 5000
Mating Tab Width 6.3 mm [.248 in]
Circuit Application Power
Waterproof Rating -
Operating Voltage -
Nominal Voltage Architecture 12 V
Connector and Terminals Terminate to -
Contact Current Rating (Maximum) -
