1544967-1

Type:
Terminals & Splices | Automotive Terminals
Brand:
TE Connectivity
Color:
41 – 100 A (High Power)
Product Description:

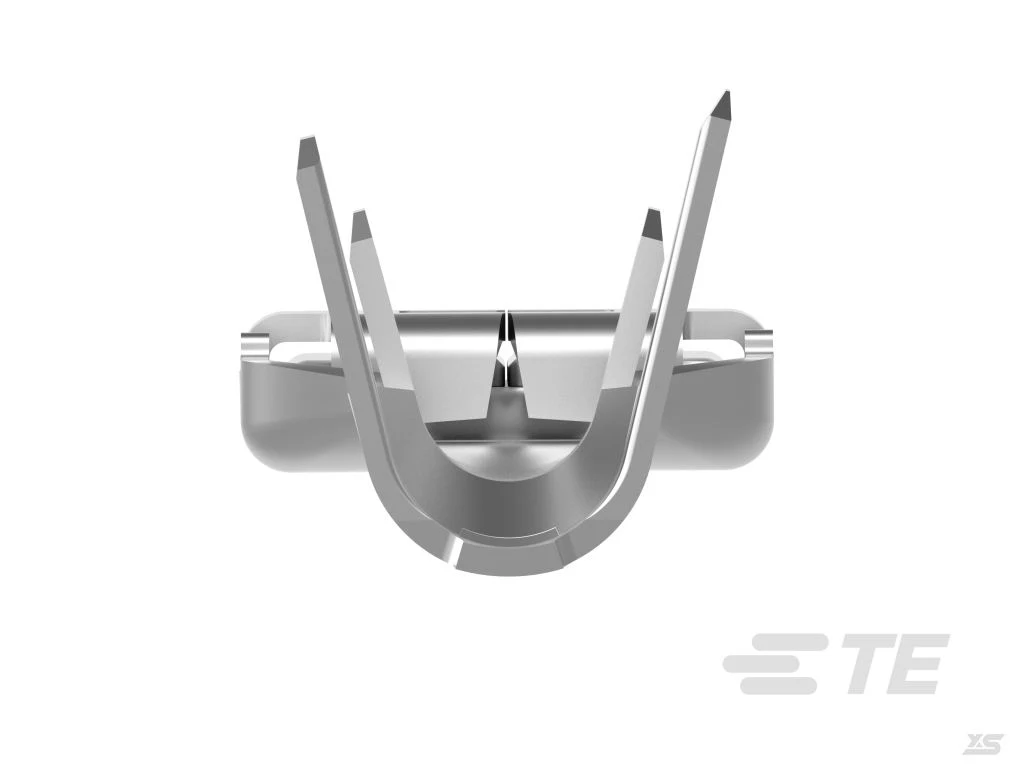

TAB, 8MM NG1 PLUS

Sealable Yes
Automotive Terminal Base Material Copper
Crimp Type F-type Crimp
Terminal Type Tab
Terminal Plating Tin (Sn)
Maximum Crimp Wire Size 4 mm²
Wire Insulation Diameter 2.8 – 3.9 mm[.11 – .154 in]
Pack Quantity -
Packaging Method -
Terminal Current 41 – 100 A (High Power)
Maximum Current 100 A
Terminal Size 8 mm[.315 in]
Terminal Size 8 mm[.315 in]
Mating Tab Thickness 1 mm[.039 in]
Operating Temperature Range -40 – 150 °C[-40 – 302 °F]
Approvals/Standards -
