174926-1

Type:
Automotive Connector Housing
Brand:
AMP
Color:
3.5 mm[.138 in]
Product Description:

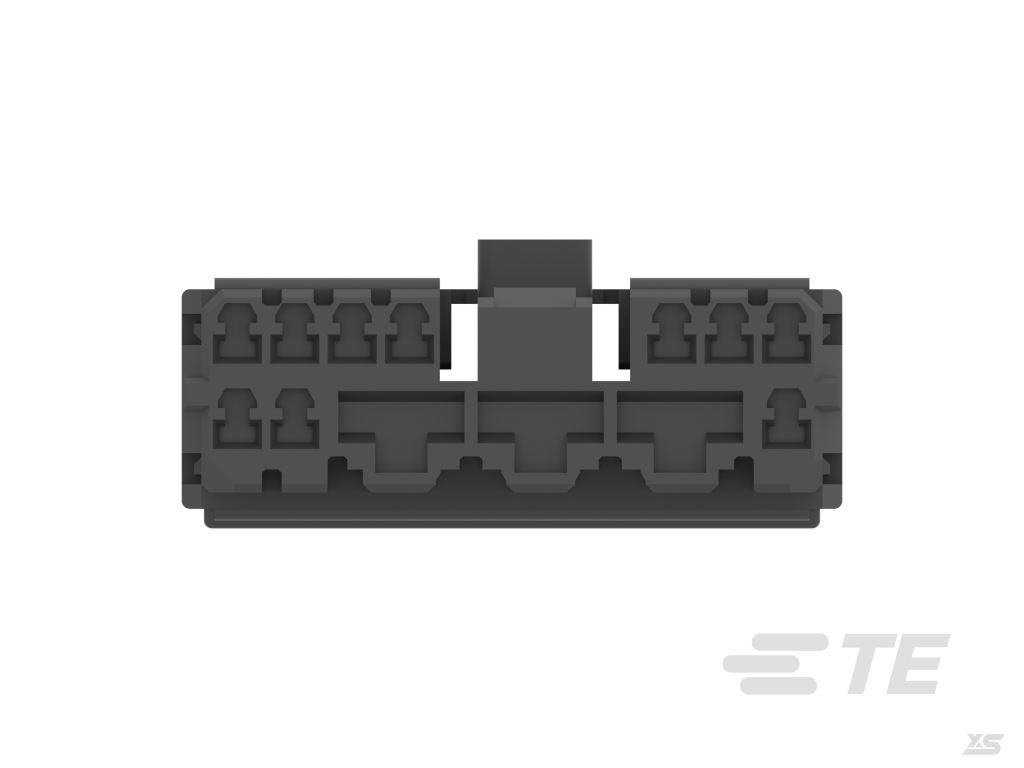

070 MLC W-W PLUG HSG 13P

Connector Type Female
Connector System Wire-to-Wire
Waterproof No
Hybrid Connector Yes
Number of Holes 13
Number of Rows 2
Body Material PBT
Wire Exit Angle 180°
Primary Product Color Khaki
Centerline (Pitch) 3.5 mm[.138 in]
Product Height 26.25 mm[1.033 in]
Product Length 24.3 mm
Product Width 40.3 mm[1.587 in]
UL Flammability Rating UL 94HB
Packing Method -
Package Quantity 50
Mating Tab Width .64 mm[.025 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V
Connector and terminal terminated to -
Terminal current rating (max) -
