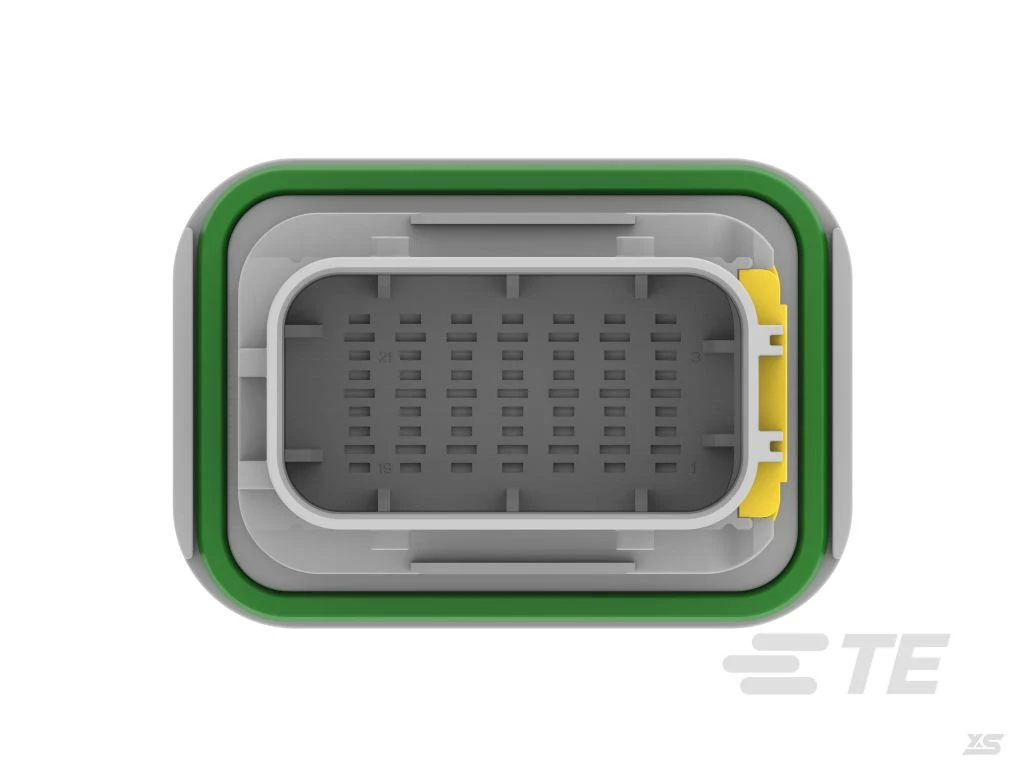

2-2112162-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
5 mm[.197 in]
Product Description:
21pos,tab2.8x0.8,tabhsg,code b,assy,s

Connector Type Male
Connector System Wire to Wire
Waterproof Yes
Hybrid Connector No
Number of holes 21
Number of rows 3
Body material PBT GF
Outlet angle 90°
Main Product Colour Earth Yellow
Centreline (Pitch) 5 mm [.197 in]
Product Height 11.6 mm[.457 in]
Product length 19.2 mm
Product Width 14.9 mm [.586 in].
UL Flame Retardant Rating UL 94V-0
Packaging Method Box
Packaging Quantity 96
Width at male end 2.8 mm[.11 in]
Circuit Application Signal
Waterproof Rating IP67,IP6K9K
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V, 24 V
Connectors and terminals terminated to -
Terminal current rating (max.)
