2-2303812-4

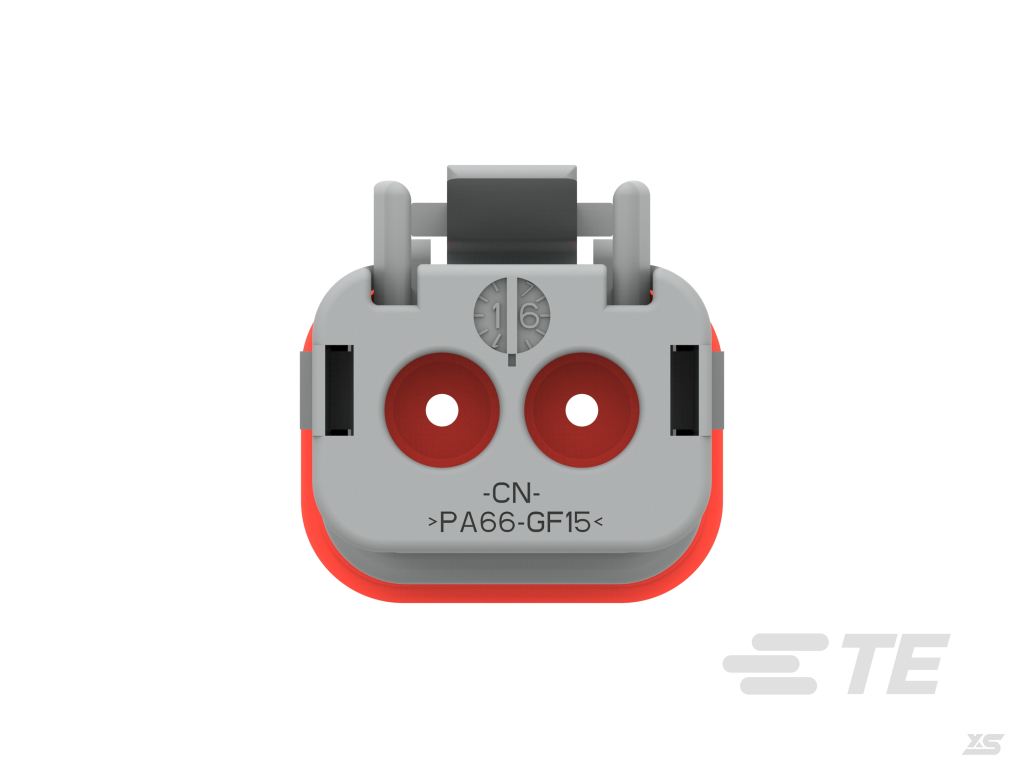

Type: Automotive Connector Boot

Brand: TE

Connectivity Colour: 5.46 mm [.215 in]

Description: DT04-2P-TE82, REC, 2P, BLK, E, SNAPXCAP

Connector Type Male

Connector System Wire-to-wire

Waterproof Yes

Hybrid Connector No

Number of Holes 2

Number of Rows 1

Body Material PA GF

Outlet Angle 180°

Primary Product Colour Black

Centre Line (Pitch) 5.46 mm[.215 in]

Product Height 17.02 mm[.67 in]

Product Length 57.18 mm

Product Width 17.15 mm[.675 in]

UL Flame RetardantClass 12mm Flame Test per Standard UL-94

Packaging Method Box

Packaging Quantity 800

Mating Male Width -

Circuit Applications Power and Signal

Waterproofing Rating IP68,IP6K9K

Operating Voltage 250 VDC

Nominal Voltage Architecture 12 V,24 V,48 V

Connector and Terminal Terminations to Wire and Cable

Terminal current rating (max.) 13 A
