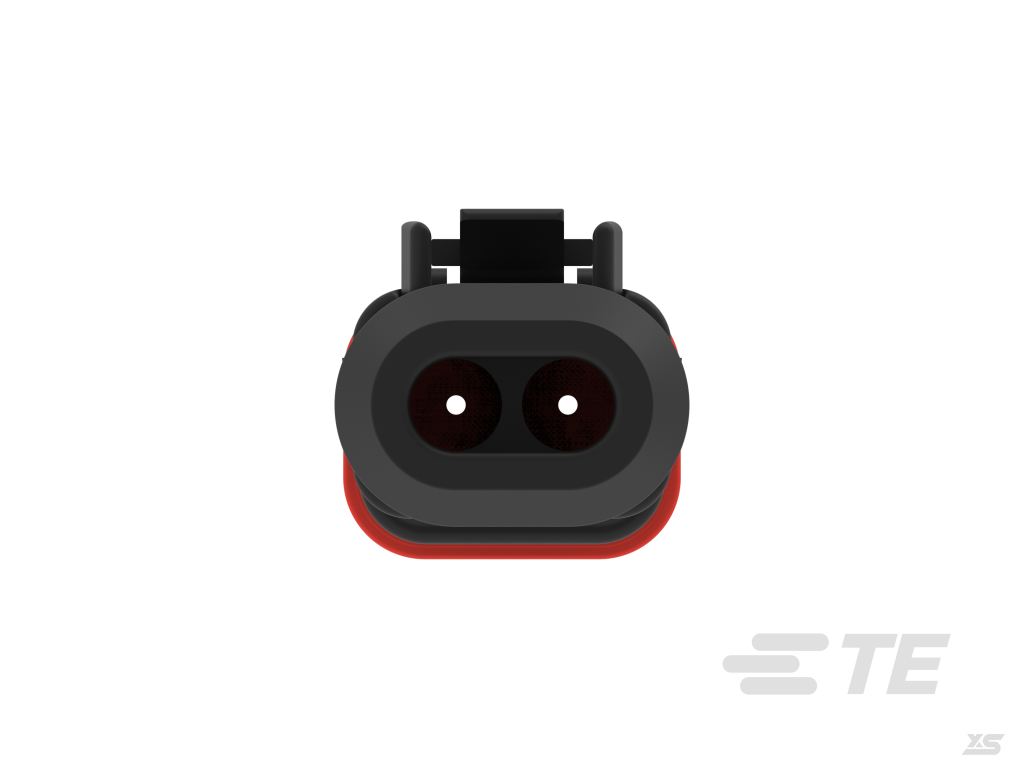

2-2303815-3

Type: Automotive Connector Boot

Brand: TE

Connectivity Colour: 5.46 mm [.215 in]

Description: DT06-2S-TN82, PLG, 2P, BLK, N, SNAPXCAP

Connector Type Female

Connector System Wire-to-wire

Waterproof Yes

Hybrid Connector No

Number of Holes 2

Number of Rows 1

Body Material PA GF

Outlet Angle 180°

Primary Product Colour Black

Centre Line (Pitch) 5.46 mm[.215 in]

Product Height 15.77 mm[.621 in]

Product Length 42.2 mm

Product Width 17.34 mm[.683 in]

UL Flame RetardantClass 12mm Flame Test per Standard UL-94

Packaging Method Box

Packing Quantity 1200

Mating Male Width -

Circuit Applications Power and Signal

Waterproofing Rating IP68,IP6K9K

Operating Voltage 250 VDC

Nominal Voltage Architecture 12 V,24 V,48 V

Connector and Terminal Termination to Wires and Cables

Terminal current rating (max.) 13 A
