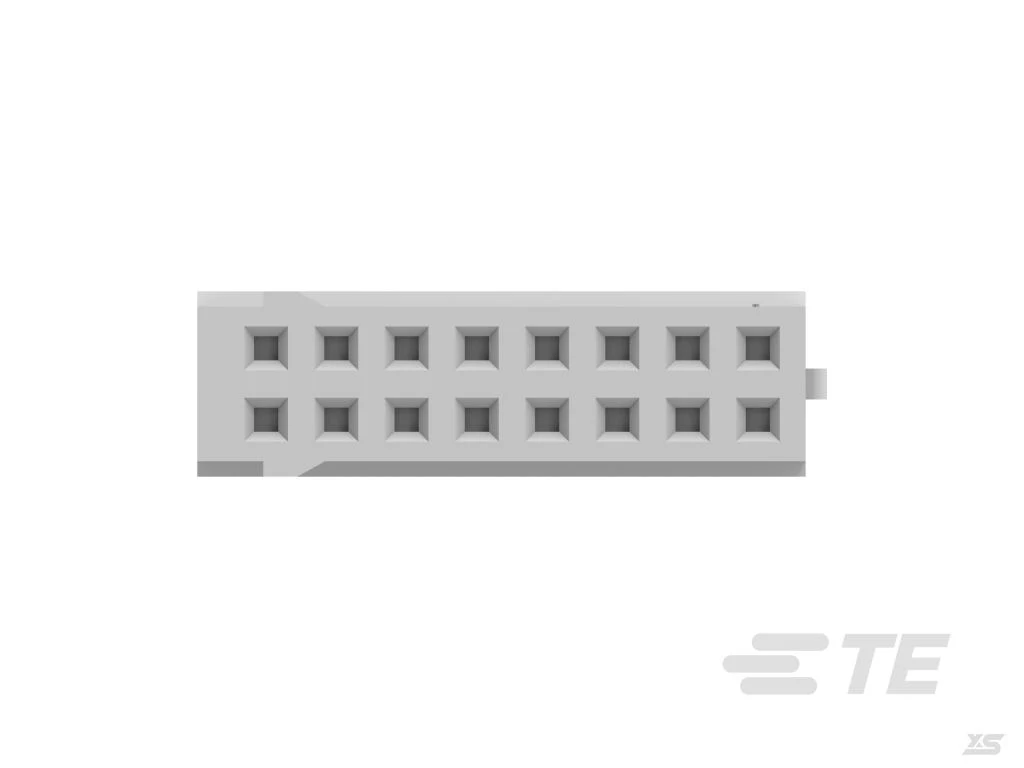

2-966596-4

Type:
Automotive Connector Housing
Brand:
AMP
Color:
2.54 mm[.1 in]
Product Description:
TSP MT REC.CONNECTOR 16/10P

Connector Type Female
Connector System Wire-to-Board
Waterproof No
Hybrid Connector No
Number of Holes 10
Number of Rows 2
Body Material PA GF
Wire Exit Angle 180°
Primary Product Color White
Center Line (Pitch) 2.54 mm[.1 in]
Product Height 15.5 mm[.61 in]
Product Length -
Product Width 6.6 mm[.26 in]
UL Flammability Rating -
Packing Method Box
Package Quantity 350
Mating Tab Width .64 mm[.025 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage -
Nominal Voltage Architecture -
Connector and Contact Terminate to -
Contact Current Rating (Maximum) -
