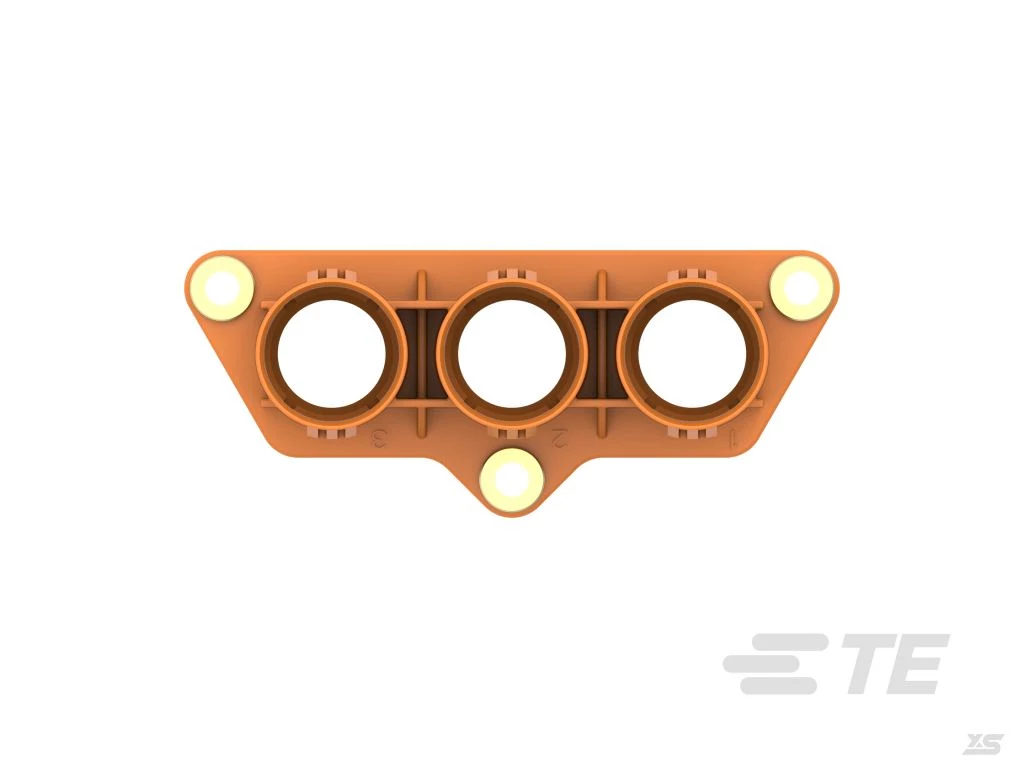

2141783-2

Type:
Automotive Connector Housing
Brand:
TE Connectivity
Color:
-
Product Description:
3POS, RING TONGUE, HSG, ASSY, SEALED

Connector Type Male
Connector System Wire-to-Board
Waterproof Yes
Hybrid Connector No
Number of Holes 3
Number of Rows 1
Body Material PA GF
Wire Out Angle 180°
Main Product Color Orange
Center Line (Pitch) -
Product Height 40.6 mm [1.59 in]
Product Length 120 mm
Product Width 49 mm [1.92 in]
UL Flammability Rating No
Packing Method Tray
Package Quantity 48
Mating Male Width -
Circuit Application
Waterproof Rating -
Operating Voltage 850 VAC
Nominal Voltage Architecture 850 V
Connector and Terminal Terminate to -
Terminal Rated Current (Maximum) -
