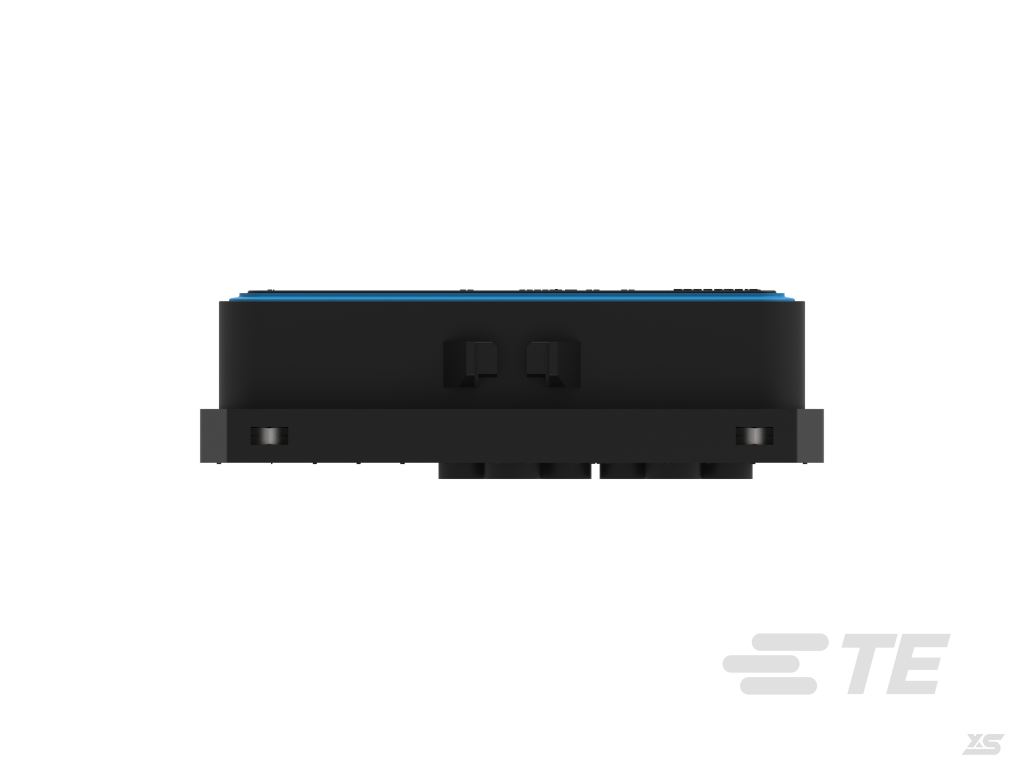

2304992-1

Type: Automotive Connector Boot

Brand: TE

Connectivity Colour: -

Product Description: CAP ASSY, KEY A, HVA280-2PHI

Connector Type Male

Connector System Wire to Board

Waterproof Yes

Hybrid Connector No

Number of Holes 4

Rows -

Main Body Material -

Outlet Angle 180°

Main Product Colour Black

Centre Line (Pitch) -

Product Height 27.65 mm[1.08 in]

Product Length 29.9 mm

Product Width 72.75 mm[2.86 in]

UL Flame Retardant Classification No

Packaging Method Box

Packing Quantity 90

Mating Male Width 1.2 mm[.047 in]

Circuit Application Signal

Waterproofing Rating IP2XB,IP6K7,IP6K9K

Operating Voltage -

Nominal Voltage Architecture -

Connector and Terminal Termination -

Terminal Current Rating (Max)
