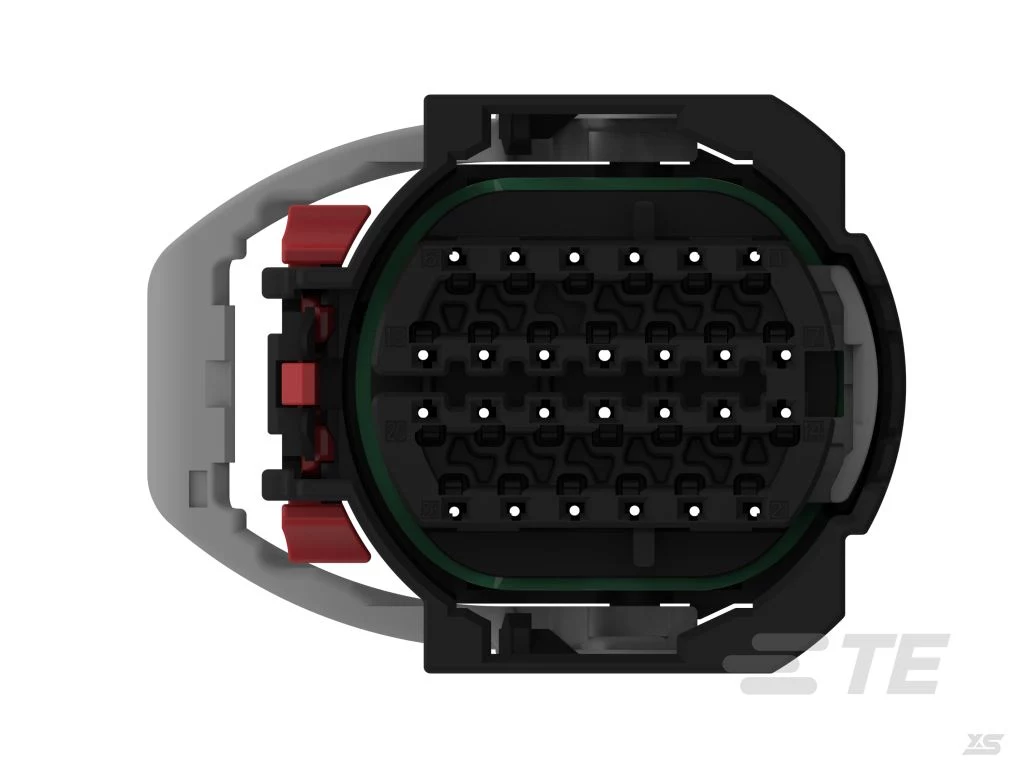

2327375-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Color:
4.3 mm[.169 in]
Product Description:
26pos,mcon 1.2,rec hsg assy,sld,cod a

Connector Type Female
Connector System Wire to Board
Waterproof Yes
Hybrid Connector No
Number of holes 26
Number of rows 4
Body material PA GF
Outlet angle 180°
Primary Product Color Black
Centerline (pitch) 4.3 mm[.169 in]
Product Height 44.2 mm [.1.74 in]
Product length 57.9 mm
Product Width 47.5 mm[1.87 in]
UL Flame Retardant Rating UL 94HB
Package
Package Quantity 1
Width at male end 1.2 mm[.047 in]
Circuit Application Signal
Waterproof Rating IP69K
Operating Voltage - Nominal
Nominal Voltage Architecture -
Connectors and terminals terminated to -
Terminal Current Ratings (Max)
