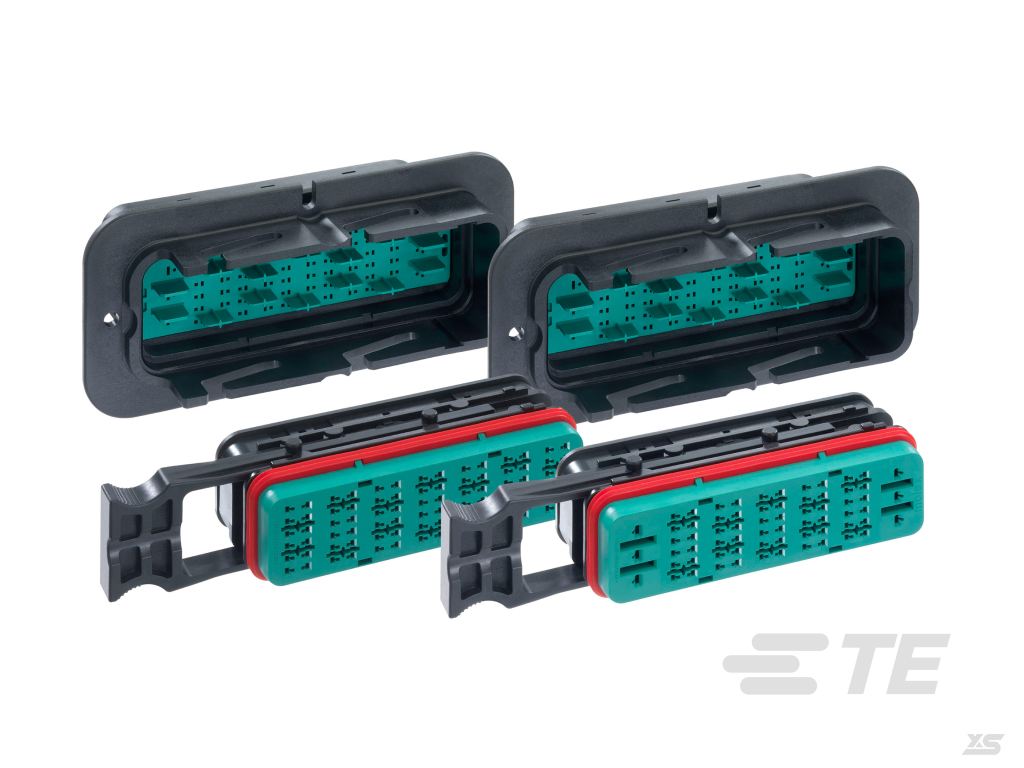

2500016-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Color:
7.85 mm[.309 in]
Product Description:
SRC Pwr 0+20ABCDEFG Male Blade Hsg Assy

Connector Type Male
Connector System Wire to Wire
Waterproof Yes
Hybrid Connector Yes
Number of holes 20
Number of rows 7
Body material PA
Outlet angle 180
Primary Product Color Black
Centerline (Pitch) 7.85 mm[.309 in]
Product Height 61.6 mm [.2.42 in]
Product Length 134 mm
Product Width 64.5 mm [.2.53 in] Product Height 61.6 mm [.309 in] Product Length 134 mm
UL Flame Retardant Rating UL 94HB
Packaging Carton,Tray
Package Quantity 36
Width at male end -
Circuit Application Power and Signal
Waterproof Rating IP68,IP69K
Operating Voltage 500 VDC
Nominal Voltage Architecture 48 V
Connectors and terminals terminated to wires and cables
Terminal current rating (max.) 40 A
