2500029-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Color:
4 mm[.157 in]
Product Description:

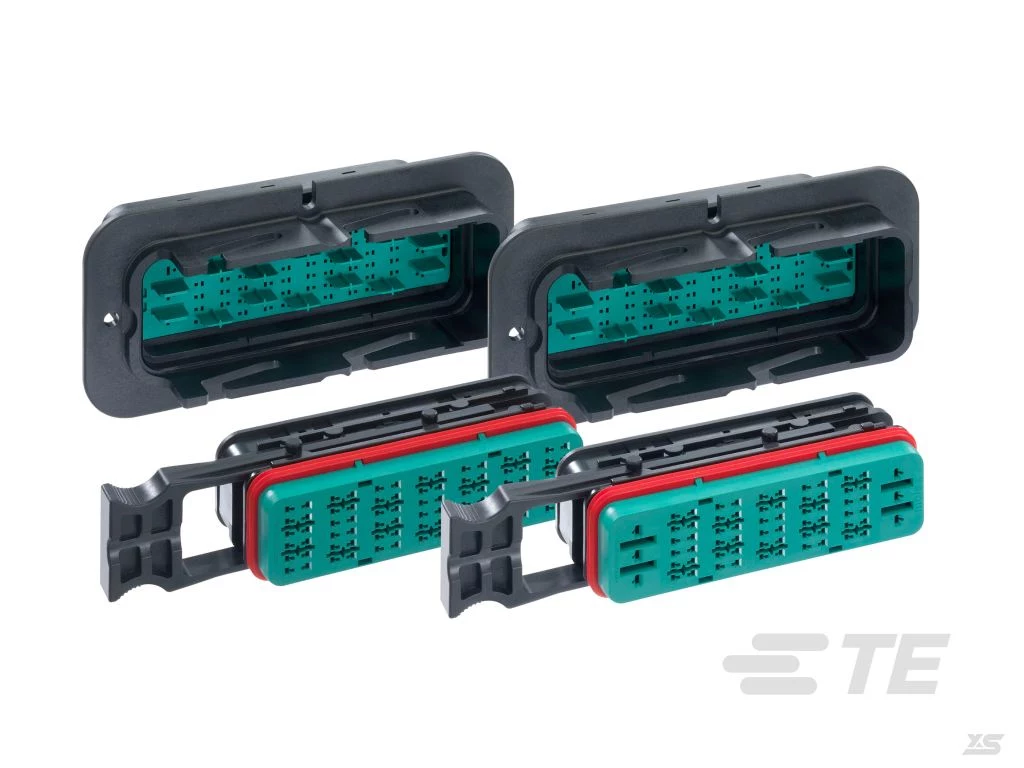

SRC2 60+6AG Male Blade Hsg Assy Green

Connector Type Male
Connector System Wire to Wire
Waterproof Yes
Hybrid connector yes
Number of holes 6,60
Number of rows 12
Body material PA
Outlet angle 180
Main Product Color Green
Centerline (Pitch) 4 mm [.157 in]
Product Height 61.6 mm [.2.42 in]
Product Length 134 mm
Product Width 64.5 mm [2.53 in]
UL Flame Retardant Rating UL 94HB
Packaging Carton,Tray
Packaging Quantity 36
Width at male end -
Circuit Application Power and Signal
Waterproof Rating IP68,IP69K
Operating Voltage 500 VDC
Nominal Voltage Architecture 48 V
Connectors and terminals terminated to wires and cables
Terminal current ratings (max.) 15 A, 40 A
