3-2112780-3

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
3.5 mm[.138 in]
Product Description:

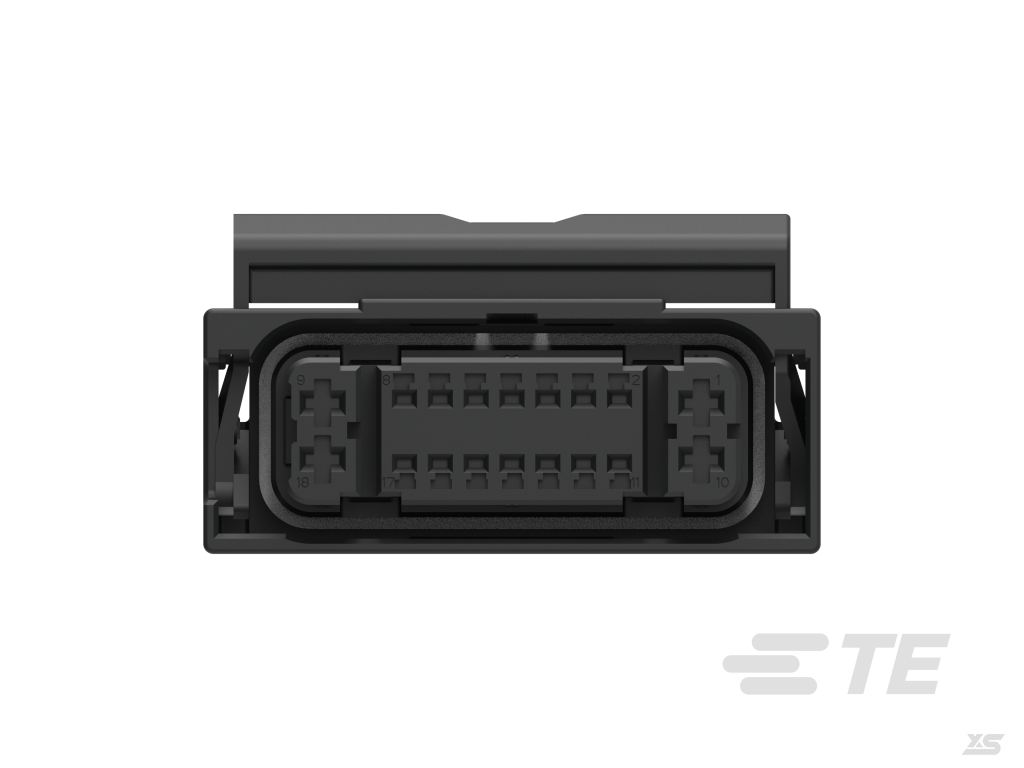

18pos, mixed, rec hsg, assy, sealed

Connector Type Female
Connector System Wire to Board
Waterproof Yes
Hybrid Connector Yes
Number of holes 18
Number of rows 2
Body material PBT GF
Outlet angle 90°
Main Product Colour Black
Centreline (Pitch) 3.5 mm[.138 in]
Product Height 33.3 mm [.1.311 in]
Product length 60.3 mm
Product Width 37.1 mm [1.461 in]
UL Flame retardancy rating UL 94HB
Packaging method -
Packaging Quantity 320
Butt Male Width 1.2 mm [.047 in]
Circuit Application Signal
Waterproof Rating IPX9K
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V
Connectors and terminals terminated to -
Terminal current rating (max) -
