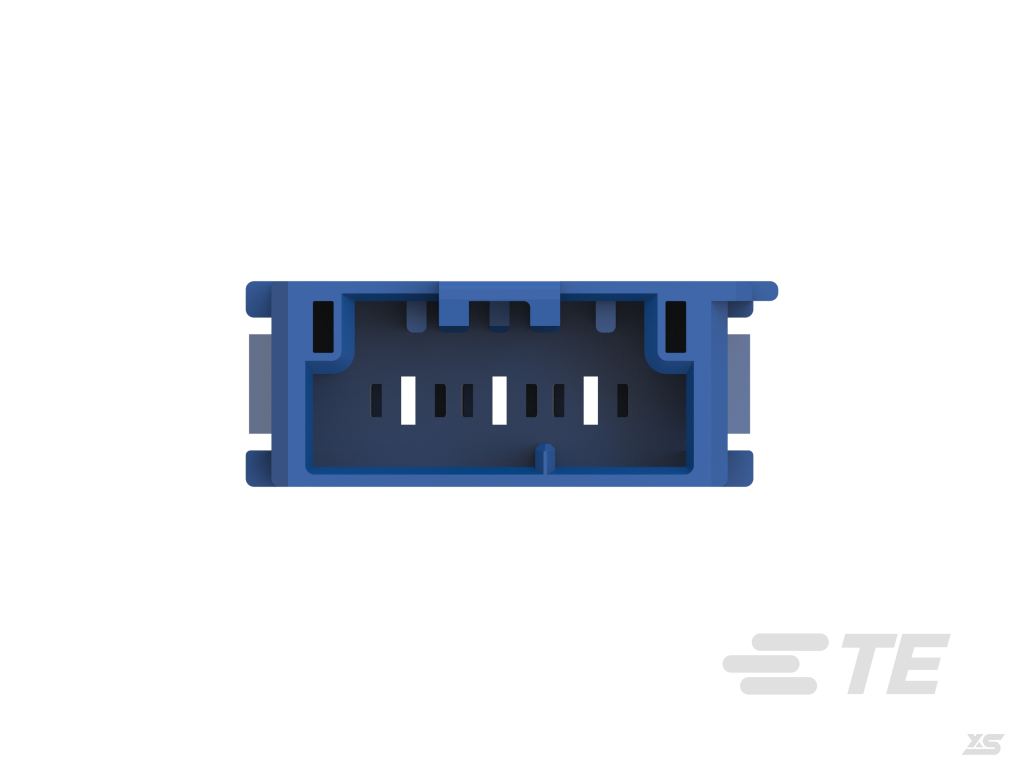

3-968977-9

Type:
Automotive Connector Housing
Brand:
AMP
Color:
5.5 mm[.217 in]
Product Description:
2,8MM FLA-STE-GEH3P

Connector Type Male
Connector System Wire-to-Wire
Waterproof No
Hybrid Connector No
Number of Holes 3
Number of Rows 1
Body Material PA GF
Wire Exit Angle Other
Main Product Color Blue
Center Line (Pitch) 5.5 mm[.217 in]
Product Height 12.4 mm[.488 in]
Product Length 32.1 mm
Product Width 42 mm[1.653 in]
UL Flammability Rating UL 94HB
Packing Method Box
Package Quantity 1500
Mating Male Width 2.8 mm[.11 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 28 VDC
Nominal Voltage Architecture 12 V,24 V
Connectors and Terminals Terminate to -
Terminal rated current (maximum) -
