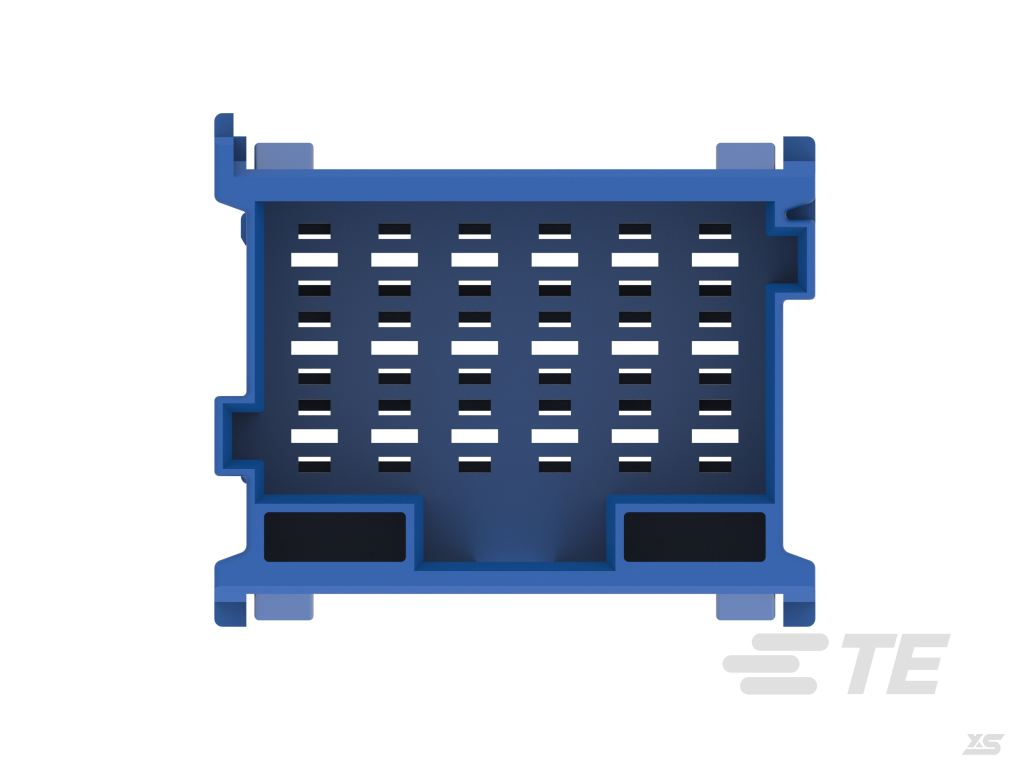

493577-2

Type:
Automotive Connector Housing
Brand:
TE Connectivity
Color:
6 mm[.236 in]
Product Description:
ASSY 10 WAY JPT REC

Connector Type Receptacle
Connector System Wire-to-Board
Waterproof Yes
Hybrid Connector No
Number of Cavities 10
Number of Rows 2
Body Material PBT
Wire Exit Angle 180°
Primary Product Color Black
Centerline (Pitch) 6 mm [.236 in]
Product Height 28.7 mm [1.13 in]
Product Length 47.1 mm
Product Width 33 mm [1.299 in]
UL Flammability Rating UL 94HB
Packing Method Box
Package Quantity -
Mating Tab Width 2.8 mm [.11 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 12 VDC
Nominal Voltage Architecture 12 V
Connector and Contacts Terminate to -
Contact Current Rating (Maximum) -
