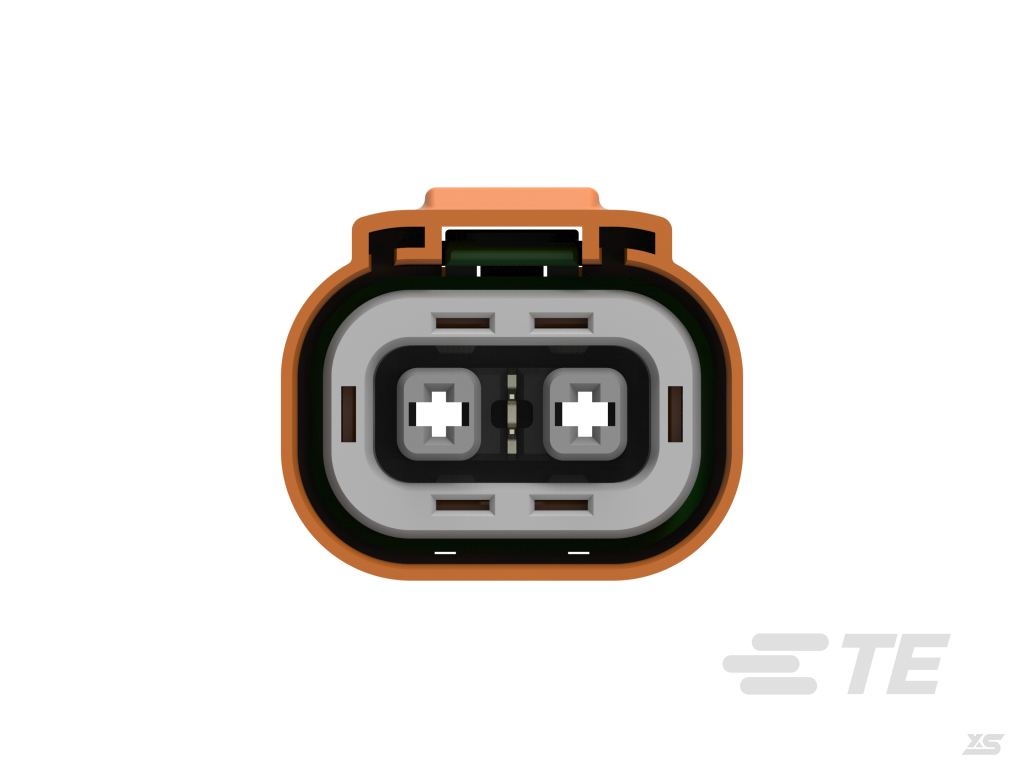

5-2103177-1

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
10.4 mm[.409 in]
Product Description:
PLUG ASSY, KEY A, FA, HVA280-2PHI XE

Connector Type Female
Connector System Wire to Board
Waterproof Yes
Hybrid Connector No
Number of holes 2
Number of rows -
Body material PA GF
Outlet angle 180°
Main Product Colour Orange
Centreline (Pitch) 10.4 mm [.409 in]
Product Height 26.4 mm [.1.03 in]
Product Length 51.25 mm
Product Width 32.9 mm[1.29 in]
UL Flame Retardant Rating No
Package
Package Quantity 1
Splice Male Width 2.8 mm[.11 in]
Circuit Application Signal
Waterproof Rating IP6K9K
Operating Voltage 600 VAC
Nominal Voltage Architecture 12 V,24 V,42 V,48 V,80 V,90 V,125 V,240 V,500 V,550 V,600 V
Connectors and terminals terminated to
Terminal current rating (max.)
