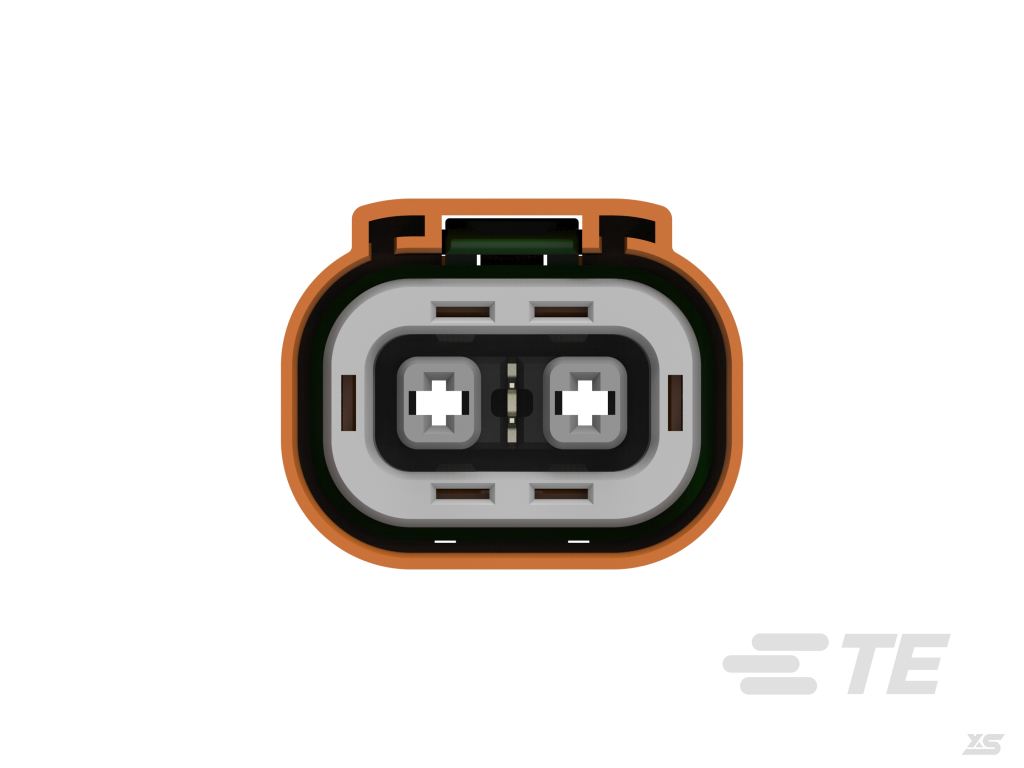

5-2103177-4

Type:
Automotive connector sheath
Brand:
TE Connectivity
Colour:
10.4 mm[.409 in]
Product Description:
PLUG ASSY, KEY D, FA, HVA280-2PHI XE

Connector Type Female
Connector System Wire to Board
Waterproof Yes
Hybrid Connector Yes
Number of holes 2
Number of rows 1
Body material PA GF
Outlet angle 180°
Main Product Colour Orange
Centreline (pitch) 10.4 mm[.409 in]
Product Height 26.4 mm [.1.04 in]
Product Length 32.9 mm
Product Width 51.25 mm[2.01 in]
UL Flame Retardant Class -
Package
Package Quantity 1
Width at male end 2.8 mm[.11 in]
Circuit Application Signal
Waterproof Rating -
Operating Voltage 600 VDC
Nominal Voltage Architecture 12 V,24 V,42 V,48 V,80 V,90 V,125 V,240 V,500 V,550 V,600 V
Connectors and terminals terminated to
Terminal current rating (max.)
