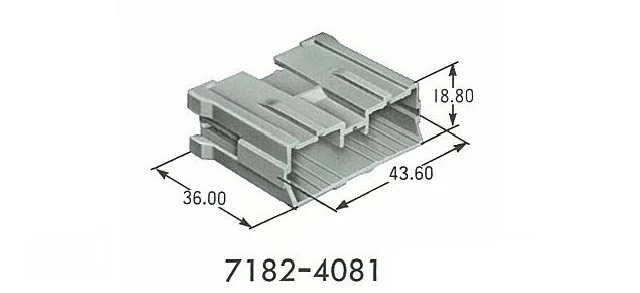

7182-4081

Type:
Connector
Brand:
YAZAKI
Color:
Natural color
Product description:

te 7182-4081
Product Category Connector
Brand YAZAKI
Circuit Application
Description
Rating -
Type -
Series*2 SDL-II Connector
Connector System Wire-to-wire
Waterproof No
Connector Type Male
Number of Holes 18
Male Terminal Width (mm) 1.8 (070)
Raw Material PBT
Surface Treatment -
Color Natural Color
Connector Part Number 7183-4081
Product Specification Number YPES-11-05-073
Operation Instructions Number YPES-15-137
Allowable Current (Reference Value) 9A (Reference Value)
Low Voltage Low Current Resistance 3mΩ or less (Initial Value)
Insulation Resistance DC500V 100MΩ or more
Withstand Voltage AC1000V (1 minute)
Operating Temperature Range*9 -30℃～80℃
Operating Temperature Range
Transmission Speed ​​
Connector Retention Force
Connection Loss
Shielding Countermeasures
