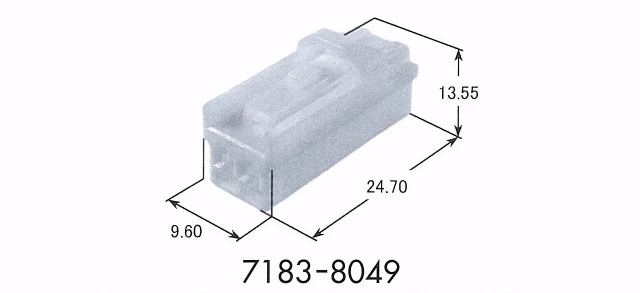

7183-8049

Type:
Connector
Brand:
YAZAKI
Color:
Natural color
Product description:

te 7183-8049
Product Category Connector
Brand YAZAKI
Circuit Application
Description
Rating -
Type -
Series*2 1.5(060) Connector
Connector System Wire-to-wire, Wire-to-board
Waterproof No
Connector Type Female
Number of Holes 2
Male Terminal Width (mm) 1.5(060)
Raw Material PBT
Surface Treatment -
Color Natural Color
Connector Part Number 7182-8049
Product Specification Number YPES-11-05-120
Operation Instructions Number YPES-15-383
Allowable Current (Reference Value) 10A (Reference Value)
Low Voltage Low Current Resistance 10mΩ or less (Initial Value)
Insulation Resistance DC500V 100MΩ or more
Withstand Voltage AC1000V (1 minute)
Using Temperature Range*9 -30℃～80℃
Using Temperature Range
Transmission Speed ​​
Connector Retention Force
Connection loss
Shielding measures
