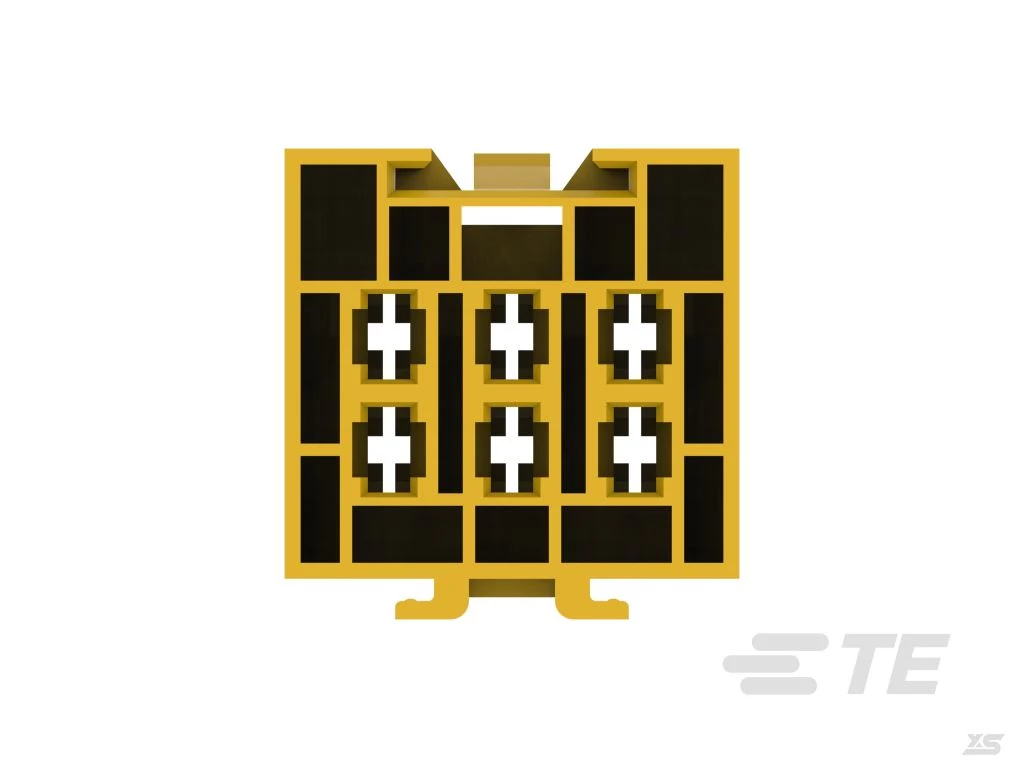

964596-1

Type:
Automotive Connector Housing
Brand:
AMP
Color:
11 mm[.433 in]
Product Description:
HALTER F3XDIODE

Connector Type Female
Connector System Wire-to-Wire
Waterproof No
Hybrid Connector No
Number of Holes 6
Number of Rows 2
Body Material PA GF
Wire Exit Angle 180°
Primary Product Color Yellow
Center Line (Pitch) 11 mm[.433 in]
Product Height 37 mm[1.45 in]
Product Length 35 mm
Product Width 30 mm[1.18 in]
UL Flammability Rating UL 94HB
Packing Method Box
Package Quantity 500
Mating Tab Width -
Circuit Applications
Waterproof Rating -
Operating Voltage -
Nominal Voltage Architecture -
Connector and Contact Terminate to -
Contact Current Rating (Maximum) -
