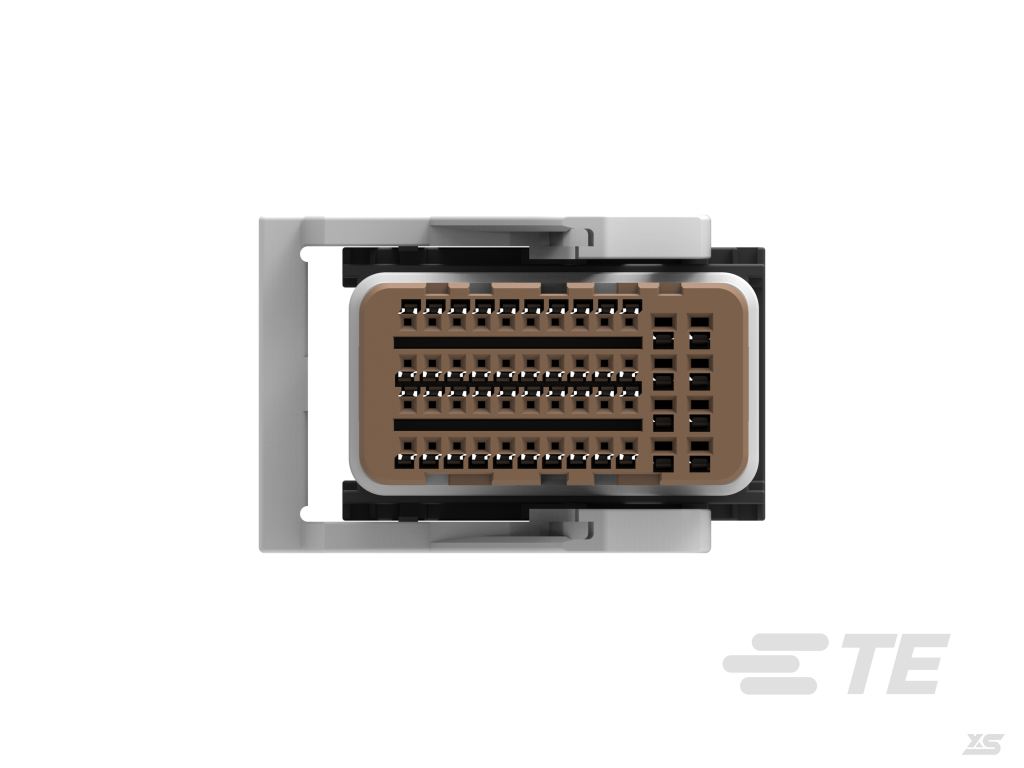

YHDP24-24-47PEL024

Type:
Automotive connector sheath
Brand:
DEUTSCH
Colour:
-
Product Description:
rec, 47p, blk, e, wthd, 16/20, p

Connector Type Male
Connector System Wire to Wire
Waterproof Yes
Hybrid Connector Yes
Number of holes 47
Number of rows -
Body material PA GF
Outlet angle 180°
Main product colour black
Centreline (pitch) -
Product Height 47.63 mm [1.875 in]
Product length 41.53 mm
Product width 50.8 mm [2 in] - Product height 47.63 mm [1.875 in] Product length 41.53 mm
UL Flame rating 20 mm flame test according to UL-94 standard
Packaging Box
Packaging Quantity 1
Width at male end -
Circuit Application Power and Signal
Waterproof rating IP67
Operating Voltage 250 VDC
Nominal Voltage Architecture 12 V, 24 V, 48 V
Connectors and terminals terminated to wires and cables
Terminal current rating (max.) 7.5 A,13 A
