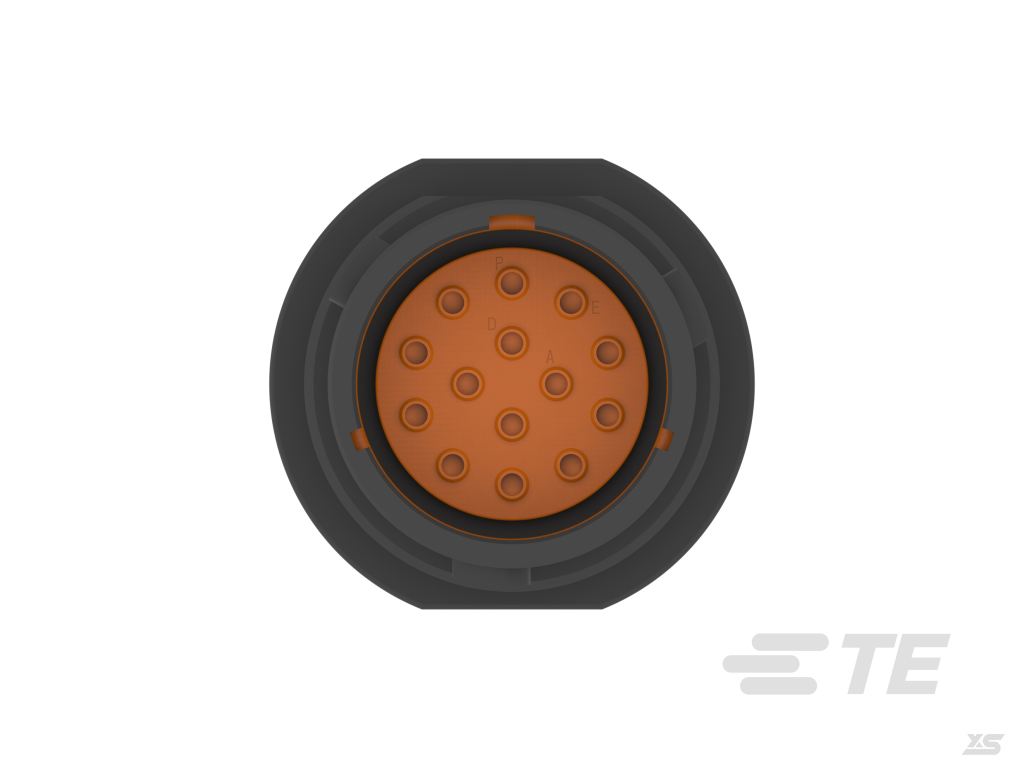

YHDP26-18-14SEL024

Type:
Automotive connector sheath
Brand:
DEUTSCH
Colour:
-
Product Description:
plg, 14p, blk, e, wthd, 16, s

Connector Type Female
Connector System Wire to Wire
Waterproof Yes
Hybrid Connector No
Number of holes 14
Number of rows
Body material PA GF
Outlet angle 180°
Main product colour black
Centreline (spacing) -
Product Height 43.17 mm [1.7 in]
Product length 38.3 mm
Product Width 43.17 mm [1.7 in] - Product Height 43.17 mm [1.7 in] - Product Length 38.3 mm
UL Flame rating 20 mm flame test per UL-94 standard
Packaging Box
Packaging Quantity 1
Width at male end -
Circuit Application Power and Signal
Waterproof rating IP67
Operating Voltage 250 VDC
Nominal Voltage Architecture 12 V, 24 V, 48 V
Connectors and terminals terminated to wires and cables
Terminal current rating (max.) 13 A
